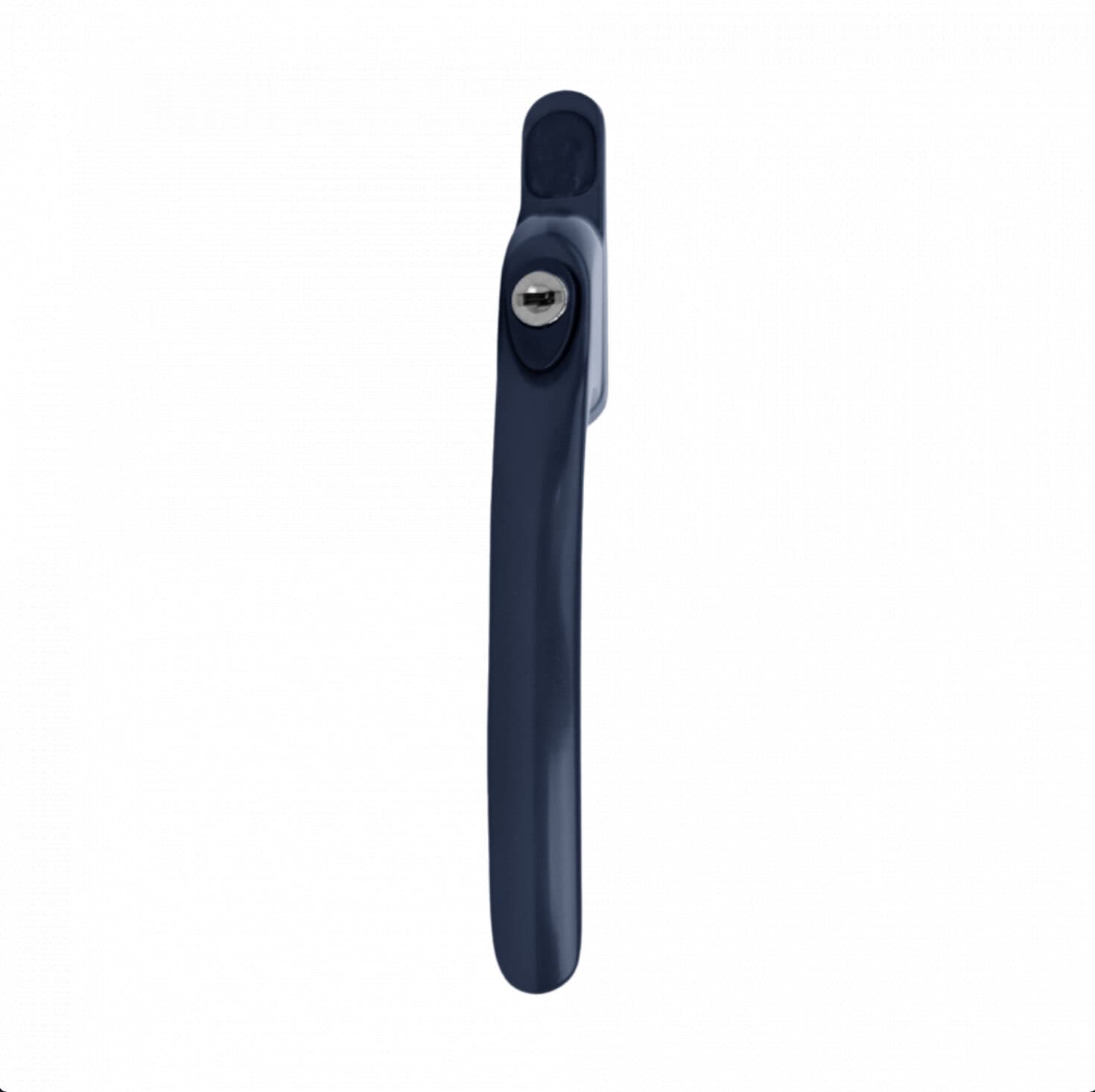

Affinity Window Handle – Cranked

Description

• Affinity suited window handles to complement the Affinity tilt and turn window handles, door handles and letterplates
• Available in left/right cranked designs
• Push to release locking mechanism
• Contoured handle for ease of use
• Available in White, Black, Champagne Gold, Chrome, Satin Chrome, Flint
• Supplied with 1 key, a cover plate and screws as standard
• Non-locking variants available
• Green non-locking button available for egress application
• Fits all espagnolette and shootbolt systems with 43mm centres

Technical Information

Assessment Data

Performance: Endurance tested to 25,000 operations
Corrosion resistance: Champagne Gold/Chrome/Flint meet requirements of BS EN 1670 – grade 4 (240 hrs Salt Spray), Powder Coated – grade 5 (500 hrs Salt Spray)

Material Specifications

Handle Lever / Backplate:?Zinc BS1004A and aluminium A360
Spindle:?Steel/Zinc plated and yellow passivated
Coverplate:?Colour coded self adhesive aluminium cover
Powder Coating:?White & Black, 60 microns minimum coating thickness
PVD/Chrome Coating: Champagne Gold/Chrome/Flint, multiple layer plating process

Additional Information

Box Quantity: 20
Accessories: Keys, cover plates, keyhole blanking caps
