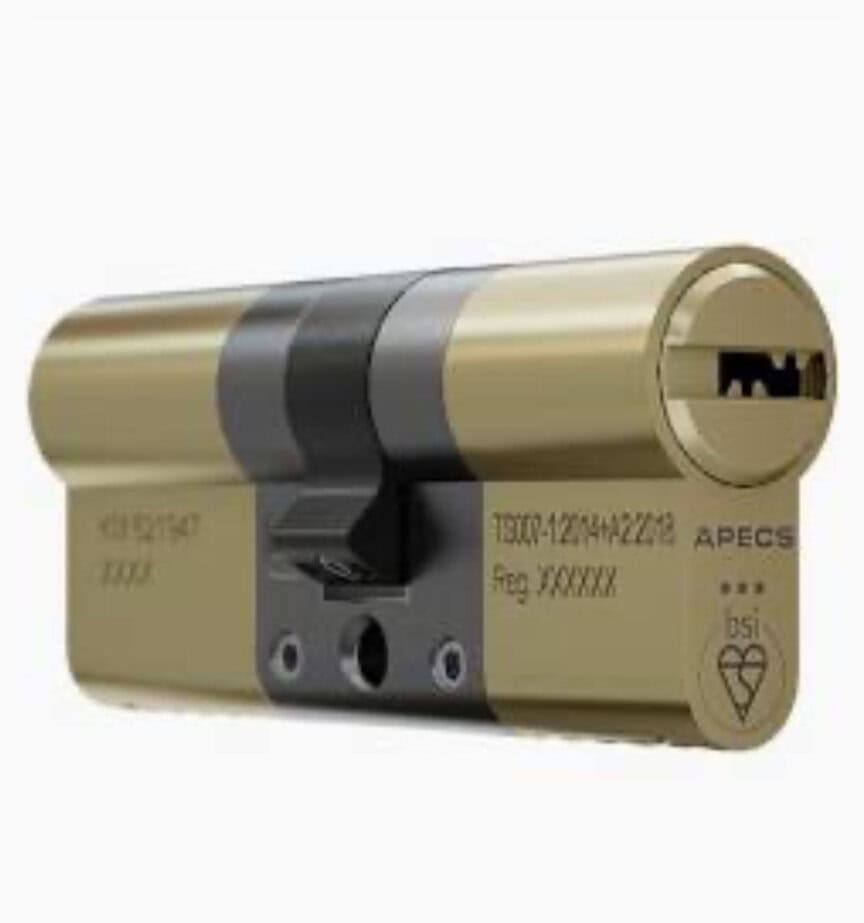

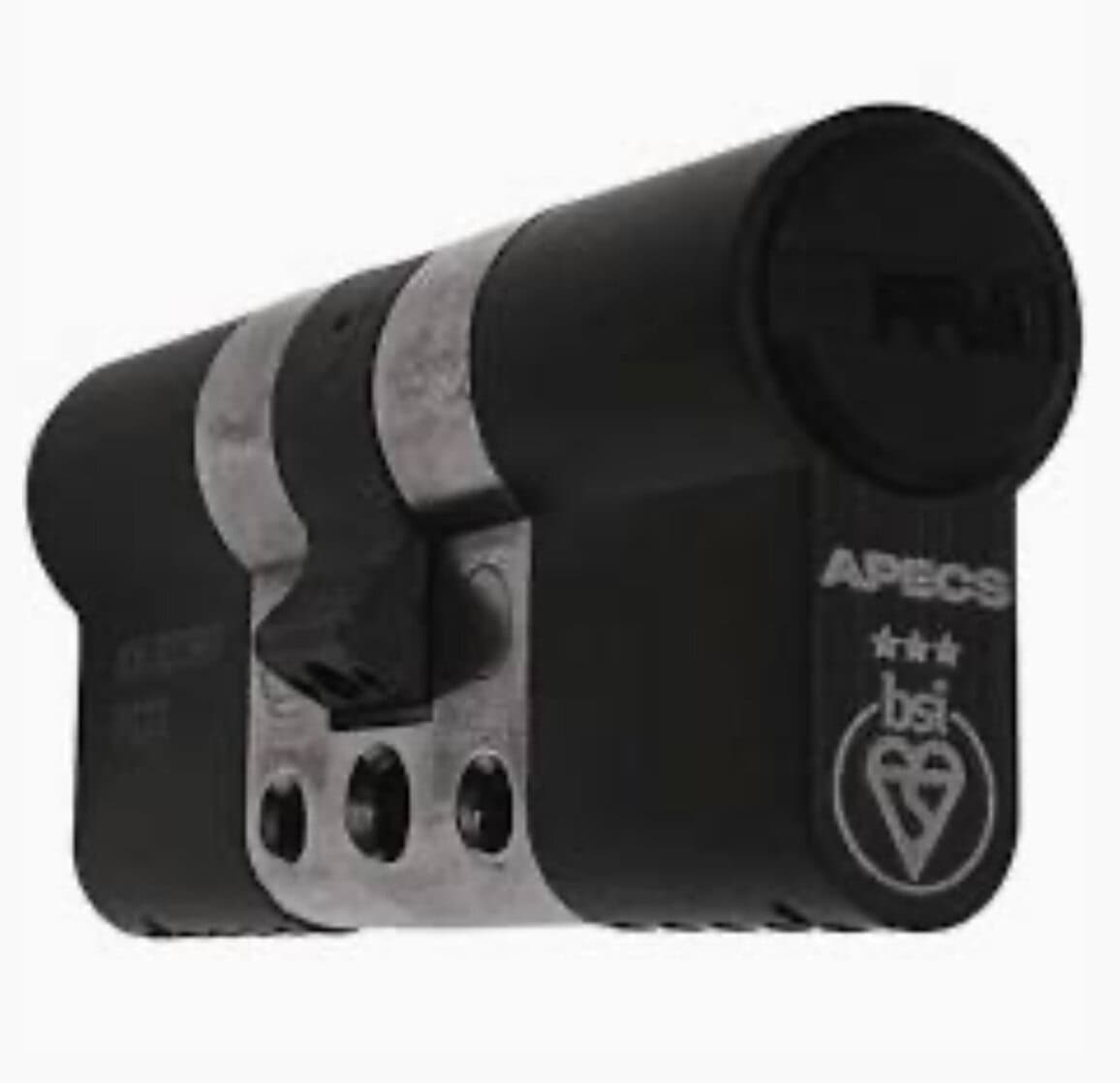

Apecs AP3, TS007 3 Star & Sold Secure Diamond Grade Euro Cylinder Lock



The APECS AP is our BSI 3 Star Kitemark, Sold Secure Diamond Standard Euro Cylinder which offers maximum protection. It safeguards from all forced methods of attack ranging from snapping, drilling, plug-extraction, picking and bumping.

The APECS AP cylinder is specifically designed to protect from unauthorised access by burglars. The AP cylinder is engineered with a unique sacrificial point, which when tampered with externally sets an interlocking cam mechanism into action, preventing any further damage to the internal parts of the cylinder, whilst still keeping the lock operable from the inside.

In the event of snapping, the homeowner can still operate the door and exit the property due to the lock’s unique mechanism which is engaged when the cylinders external section is snapped off. This mechanism slides the clutch into place, preventing further external damage and manipulation of the cam, whilst keeping the lock operable from the inside.

  • Anti-pick: 4 pins on each side
  • Anti-bump: double locking mechanism with track rail pins in combination with a unique shallow chamber
  • Anti-drill: 2 pins on each side of the cylinder shell + 5 on each side in the cylinder core
  • 1 steel driver pin on each side
  • Snap-secure sacrificial point
  • Restricted key profile
  • Double locking mechanism with additional track rail pins
  • Patented interlocking mechanism and hardened cam protection block prevents from snapping and plug extraction
  • Patented ball-bearing connection ensures additional operation smoothness and strong fixing between the cylinder core and the cam
  • Operable from inside when lock is tampered with externally
    • BSI 3 Star Kitemark – KM621947
    • Sold Secure Diamond Standard – CLME08161454
    • Tested to TS007:2014 + A2:2018

    Tested to EN1303:2015 — 16000C6D




Additional information
Size (Internal First)

30-30, 35-35, 35-45, 35-55, 40-40, 40-45, 40-50, 40-55, 45-40, 45-45, 45-50, 45-55, 50-40, 50-45, 50-50, 55-40, 55-45, 60-40
